SKUP12595A

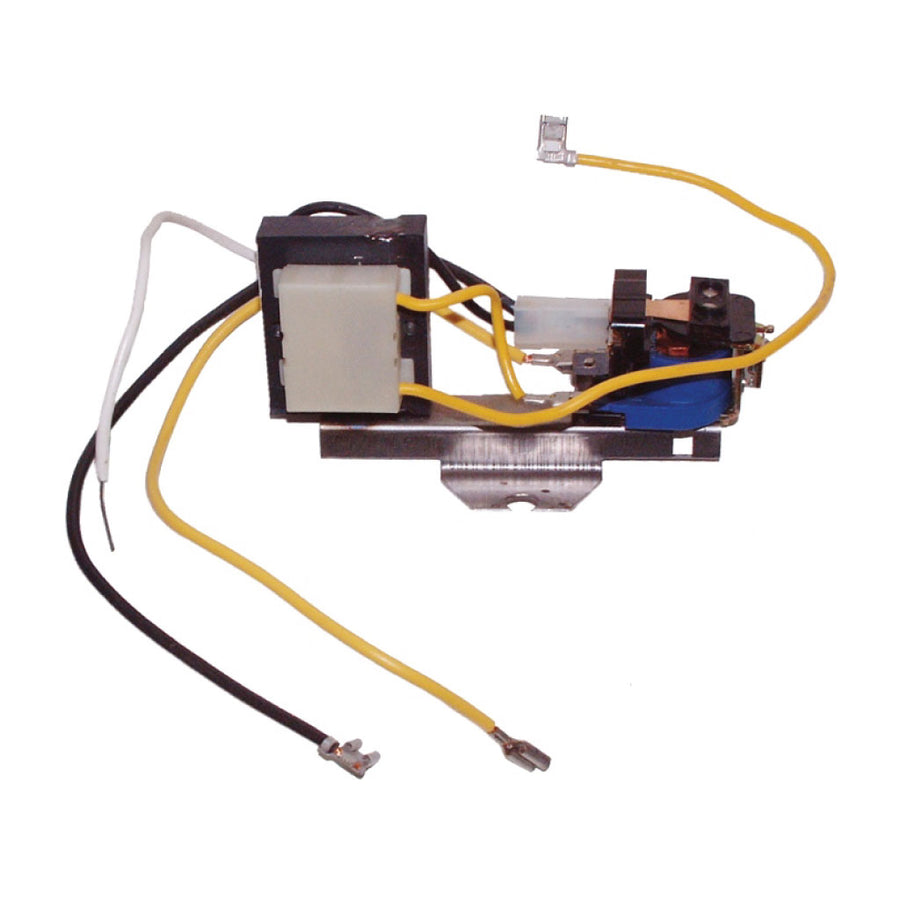

Transformer and Relay Assembly 120V

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Instructions for replacing1. Disconnect Power from the Unit2. Remove the Screws from the Lid3. Remove the Lid4. Disconnect 2 Yellow Low Volt Wires5. Disconnect 2 Black wires from Relay6. Disconnect White wire7. Remove bolt holding transformer bracket8. Replace bolt with the new transformer bracket in place9. Connect 2 Yellow Wires10. Connect 2 Black wires11. Connect White Wire12. Replace Lid13. Replace and tighten screws on lid14. Connect Power to the Unit15. Test Unit
